Our Theory of Force Curves [*,**]
In our theory, all equations and all parameters are normalized.

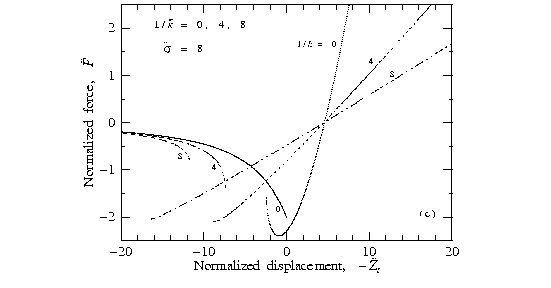

The normalized force curve is the functional of following only two parameters.
- the normalized compliance of the measurement system.
- the normalized distance used in the expression of Lennard-Jones potential.
Please compare with Dr.Burnham's Theory.
We are very grateful to
Dr.H.M.Pollock
for his kind and helpful suggestion on the normalization
of the length longitudinal to the plane.
The 'h' in the normalizing parameter we used is from his initial of the first name.

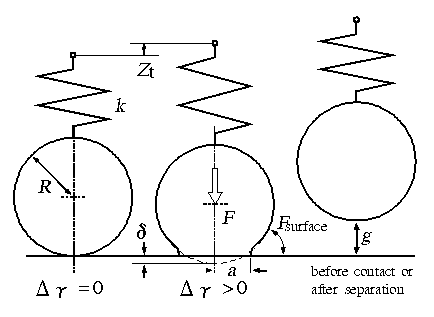

The schematic illustration of the model used is ;
As for the detail, please see the bellow refferences or
contact to myself.
You can DownLoad the original data.
Thank you for your attention.
[*] Influence of the stiffness of the measurement system on the elastic adhesional contact
(Kunio TAKAHASHI, Ryoji MIZUNO and Tadao ONZAWA)
Journal of Adhesion Science and Technology, 9, p.1451-p.1464 (1995)
{**} Effect of the stiffness of the measurement system on adhesion force curve in the elastic continuum limit
(Kunio TAKAHASHI and Tadao ONZAWA)
Journal of Adhesion Science and Technology, 10, pp.17-31 (1996)
